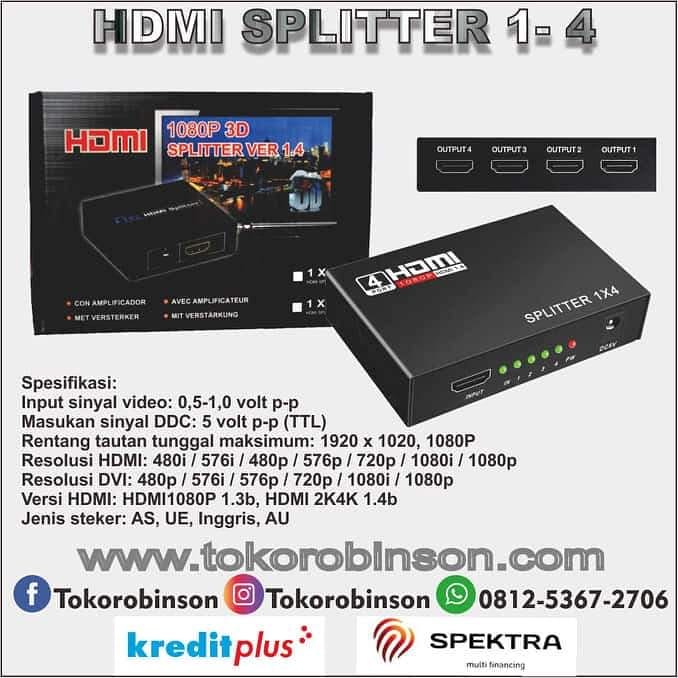

Deskripsi HDMI SPLITTER VER 1.4 1080P 3D
One HDMI input signal split to four HDMI sink devices
HDCP 1.3 protocol compliant
Support 3D /4K*2K
Support CEC
Support deep color 30bit, 36bit, 48bit
Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Support signal Retiming
Support input up to 15metres AWG26 HDMI standard cable length,
Output up to 25metres AWG26 cable length
No loss of quality
Installs in minutes
Need DC5V 1A power supply
CONNECTING AND OPERATING:
1 Connect one cable from HDMI source devices into HDMI Splitter input.
2 Connect one cable from each display (monitor or projector) into the HDMI Splitter outputs.
3 Connect 5V power supply to the HDMI 1×4 Splitter.
SPECIFICATIONS:
HDMI version… HDMI 1.4V
HDCP version…… HDCP1.3
HDMI resolution… 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format… 24bit/deep color 30bit, 36bit
Support audio format… DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth… 340MHz
Max baud rate…… 6.75Gbps
Input/Output TMDS signal… 0.5~1.5Volts P-P (TTL)
Input/Output DDC signal…… 5Volts P-P (TTL)
Input cable distance…. AWG26 HDMI standard cable ≤ 8M
Output cable distance… 10m HDMI standard cable ≤ AWG26.
Max working current…… 600mA
Power adapter format..Input… ..AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range…… (-15 to +55 ). Operating Humidity range…… .5 to 90%RH (No Condensation)
Dimension (L x W x H)…… 115x61x25 (mm)
